Iframe Integration and CSS

PreviousDynamic Currency ConversionNextFraud Intelligence

Last updated 3 months ago

Was this helpful?

The Saferpay Payment Page, the transaction interface and Secure Card Data offer the options for iframe integration and custom design using Cascading Style Sheets (CSS). The following describes how these features can be used and what needs to be adhered to.

Iframe Integration

iframe integration is supported for these methods/flows:

  • /

  • /

  • /

The response message includes a respective RedirectURL, if successful executed. This URL needs to be embedded in the iframe.

Iframe support

The following payment methods do not support the Iframe integration.

In case of these Payment methods, Saferpay will break out of the Iframe, so the payment may be performed, using a full-size payment page.

Please note, that your ReturnUrls, will then also be displayed in full size and not within your iFrame.

Pop-Up

Saferpay does not support pop-ups. Since most browser block pop-ups by default anyway, we highly recommend using other means, like lightboxes, or a direct iFrame embedding into your site.

Integration

<iframe name="fields-card-number" scrolling="no" src="<%= REDIRECT URL %>"></iframe>

iFrames and the CORS-policy

Size of the iframe

The size of the iframe is communicated to the merchant via an HTTP-POST message, which can be captured using JavaScript. The iframe can thus be dynamically adapted to the content.

<html lang="en">
   <head>
      <title>Payment Form</title>
   </head>
   <body>
      <h1>Payment Form</h1>
      <iframe src= "<%= RedirectUrl %>"> </iframe>
   </body>
</html>

The POST message is transmitted in JSON format:

{
  "message":"css",
  "height":450,
  "width":650
}

JavaScript example for receipt of message (for jQuery >= 1.9)

$(window).bind("message", function (e) {
	if (e.originalEvent.data.height <= 450) return;
	$("#iframe").css("height", e.originalEvent.data.height + "px");
});

Not every page reports its size to the merchant’s system. However, Saferpay has to forward users to third parties during the payment process (Like with the 3D Secure procedure), thus we recommend a minimum size of 450x450 pixels, in case this feature is not supported by the site.

Using CSS

The use of Cascading Style Sheets (CSS) is available via the following methods/flows:

With a request using the Styling container, the CssUrl parameter must be forwarded, alongside a reference to the CSS file which is to be used.

CSS Elements

All browsers include tools that simplify designing with CSS. CSS can thus be edited directly in the browser, and the results can be observed.

Example for Chrome browser

With the right mouse button, click the item to be edited:

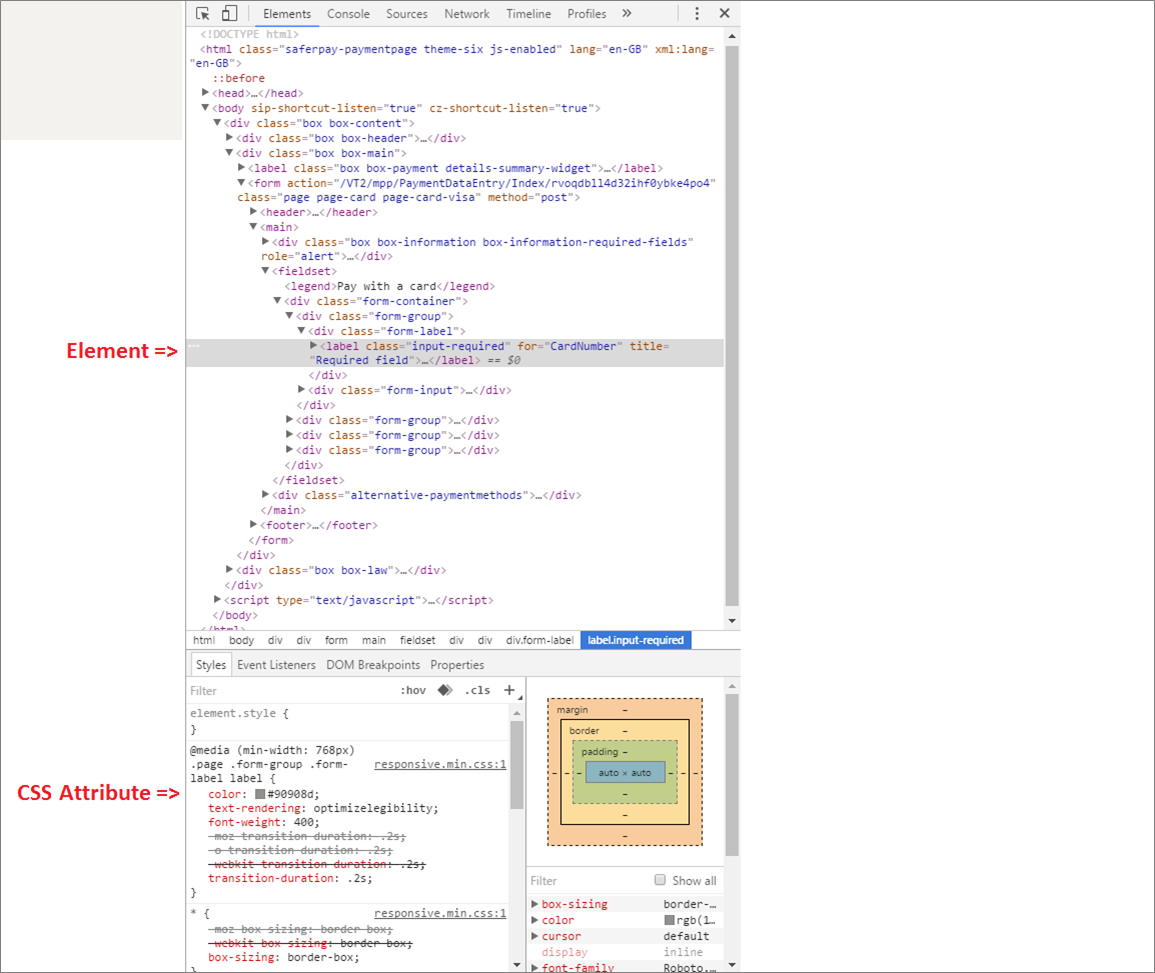

It opens a menu which shows the HTML code and the CSS classes with the corresponding attributes:

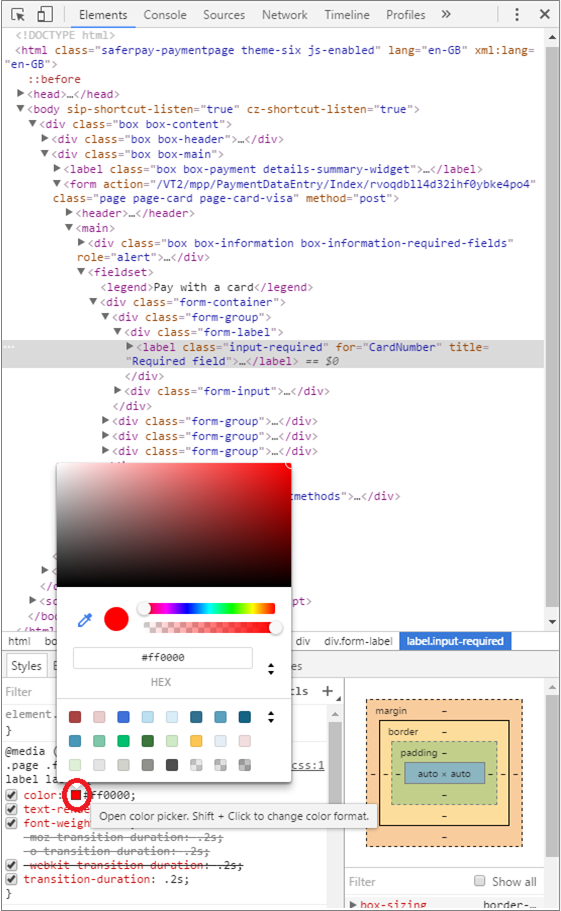

As an example, the text colour is adjusted here (CSS attributes can also be added and removed, if supported by the browser):

The change is immediately displayed in the browser. Then, the code simply needs to be transferred to the CSS file:

Best practices

Do

  • Classes: You should use the element-class, in order to select the element you want to style.

  • Selectors: As a principle, all CSS selectors for CSS1, CSS2 and CSS3 are supported, depending on the used browser.

Don't

  • Element ID: Element ID should not be used because the ID used may change without notice.

  • Element Attribute: Element attributes should not be used, because attributes (name, value, data-*, etc.) can change without notice.

  • Structure: Do not rely on the HTML-structure staying the way it is. You should not go through the elements in order, or rely on the number of nodes staying the way they are.

    • Do not use (e.g.) nth-of-type(), sibling (+) selector, child(>) selector.

Additional Information

  • The CSS file that is referenced by the CssUrl parameter must be stored on a web server that supports HTTPS.

    • Every bit of code must be contained within the same CSS file. Importing more than one file is not supported!

    • External files (Images, Fonts etc.) must be loaded via a Data-Url within the CSS file itself!

  • It is recommended to display a progress bar while something is loading in an iframe.

  • The PCI specifications DO NOT allow jumping into the iframe with JavaScript. So manipulating it, using JavaScript, is strictly prohibited!

  • Some third party payment providers (e.g. PayPal) DO NOT support the integration inside an iframe. Thus, the PaymentPage will break out of the iframe beforehand.

  • Integrating Saferpay via an iframe will also cause the SuccessUrls to be called inside said frame. If you want to present the return pages in full size, you can break out of the frame yourself, using JavaScript.

Example of iframe break out in JavaScript

Executing this code will re-load the return page, resulting in it being called twice.

<html lang="en">
    <head>
        <title>Success Page</title>
        <script type="text/javascript">
          function iframe_breakout()
          {
              if (top.location !== location){
                  top.location.href = document.location.href;
              }
          }
        </script>
    </head>
    <body onload="iframe_breakout()">

        SOME HTML…

    </body>
</html>

The integration is really simple. Simply execute a , , or an and use the RedirectUrl as the src-attribute value for the iFrame:

is a security policy, that handles the sharing of external ressources on a given website, for instance externally hosted JavaScript libraries, but also iFrames. If this policy is not followed in a correct manner, it can happen, that the iFrame is blocked by the respective browser. When integrating Saferpay into an iFrame, please always consider this policy.

The CSS feature should not be used with the as the feature is deprecated there. Please use the instead.

/

/

(click to enlarge)
(click to enlarge)

When aiming for the , you must set the ContentSecurityEnabled parameter inside the Styling-container to true. Furthermore, you have to consider the following things:

Cross-Origin Resource Sharing (CORS)
Saferpay Payment Page
Payment Page Configuration
Transaction Initialize
Transaction Interface
PCI DSS SAQ-A compliance
PaymentPage Initialize
Payment Page
Transaction Initialize
Transaction Interface
Alias Insert
Account-to-Account
Payments
giropay
paydirekt
PayPal
iDeal
Sofort by Klarna
eps
Postfinance Pay
Alias Insert
(click to enlarge)
(click to enlarge)
Standalone Secure Card Data Registration
Standalone Secure Card Data registration
Alias Insert
Transaction initialize
Payment Page Initialize
